LM6152/LM6154 Dual and Quad 75 MHz GBW Rail-to-Rail I/O Operational Amplifiers

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

  • Parameters

    Application: LED Drive Power Supply, Medical Power Supply

    Features1: Glass Passivated Chip

    Features2: Low Forward Voltage Drop

    Features3: Ideal for Printed Circuit Board

    Features4: High Surge Current Capability

    Transport Package: Plastic Package

Basic Info.

Model NO.LM6152SpecificationSOIC (8)
OriginGuangdong, ChinaProduction Capacity10000 Pieces/Day


Part Name

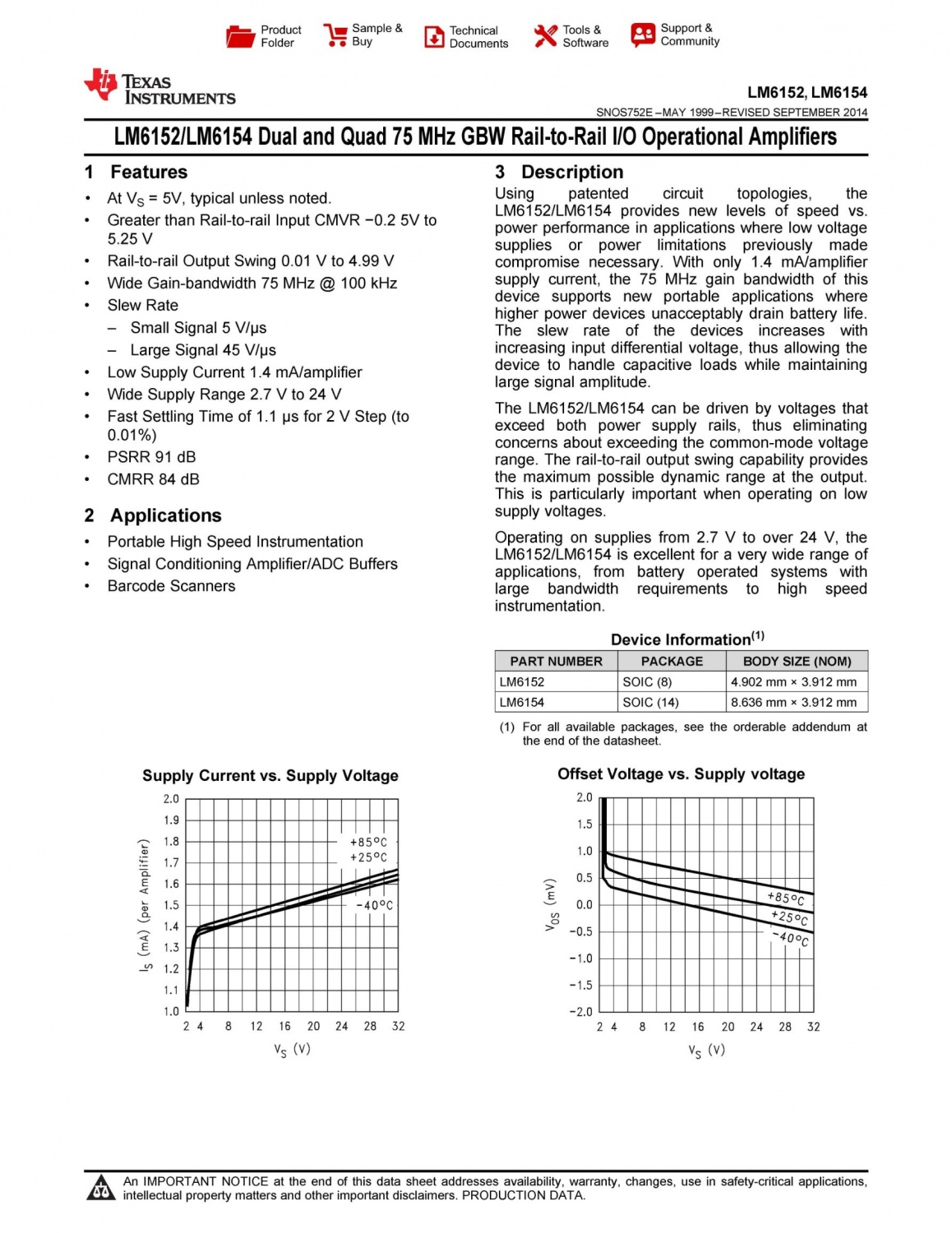

LM6152/LM6154 Dual and Quad 75 MHz GBW Rail-to-Rail I/O Operational Amplifiers


FEATURES

1.At VS = 5V, typical unless noted.

2.Greater than Rail-to-rail Input CMVR −0.2 5V to 5.25 V

3.Rail-to-rail Output Swing 0.01 V to 4.99 V

4.Wide Gain-bandwidth 75 MHz @ 100 kHz

5. Slew Rate - Small Signal 5 V/μs  - Large Signal 45 V/μs

6.Low Supply Current 1.4 mA/amplifier

7.Wide Supply Range 2.7 V to 24 V

8.Fast Settling Time of 1.1 μs for 2 V Step (to 0.01%)

9.PSRR 91 dB  CMRR 84 dB

APPLICATIONS

1.Portable High Speed Instrumentation

2.Signal Conditioning Amplifier/ADC Buffers

3.Barcode Scanners
